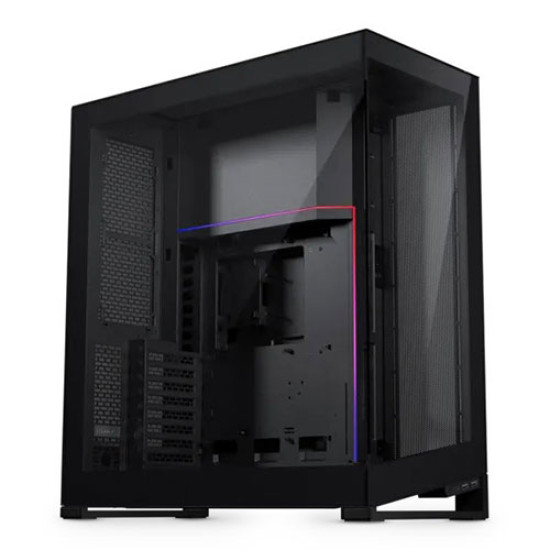

Phanteks NV7 E-ATX Full Tower Cabinet Black (PH-NV723TG-DBK01)

A True Showcase of Performance

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the mainboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.

With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.

A Perfect Frame For Your System

Near-seamless glass panels.

The motherboard as a centerpiece of your build.

Fans all around the system with a strong outer frame.

Build to last from thick reinforced steel.

Performance without Compromise

Direct and dedicated GPU cooling from the bottom.

Immense bottom airflow intake with 65mm clearance.

Ultra-Fine Performance mesh on all external panels.

Extensive cooling supports triple 360 plus a 240 radiator simultaneously

Clean Exterior From All Sides

The clean rear door and moveable front IO module allows for multiple placement options.

Rear door swings open to provide easy access.

Unique cable management system for external cables.

Go for a zero-cable setup using the hidden cable exit grommet.

Cover doors and velcro cable combs easily hide and manage the internal cables.

Unique Interior Features

Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard.

Removable side and bottom fan bracket for easy installation.

Bottom bracket can be reversed for angled or horizontal position

Specification

Model Name  :NV7 Black

Model No. : PH-NV723TG-DBK01

Case Dimention : 532 x 253 x 586 mm/ 20.9 x 10.0 x 23.1 in

Form Factor : Full Tower

Materials : Steel Chessis,Tempered Glass Front and side panels

MotherBoard Support : ATX,Micro-ATX,mini-ITX, SSI-CEB,E-ATX(up to 277mm wide)

Color : Stain Black

Front IO

1xUSB 3.2 GEN 2 TYPE-C

2x USB 3.0

Microphone/Headphone combo

Power Button

D-RGB Mode Button

D-RGB Colour Button

D-RGB Channel Button

Connectors

Power SW (Power Switch)

Power LED

USB 3.0

USB 3.2 GEN 2 TYPE-E

HD Audio

2x DRGB Channel A

2x DRGB Channel B

D-RGB Motherboard Input

2x SATA Power

D-RGB Controller Input : 7A per Channel, 4A per port, Total 14 Watt

PCle Slots : 8

Vertical GPU : Yes, With Optional Vertical GPU Bracket PH-VGPUKT4.0_03R

Internal 3.5'' bay : 2(1x if all SSD position are used)

Internal 2.5'' bay : 6(2x if both HDD position are used)

Bottom Fan : 3 x 120mm/ 3 x 140mm

Side Fan ; 4 x 120mm

Top Fan : 3 x 120mm

Rear Fan ; 2 x 120mm

Side Radiator : up to 360

Top Radiator : up to 360

Rear Radiator  ;up to 240

Bottom Radiator : up to 360/280

GPU Length ; 450mm/17.7in

CPU Cooler Height  :185mm/7.3in

PSU length : 255mm

Package Dimension  :690 x 345 x 628 mm/ 27.2 x 13.6 x 24.7 in

Net Weight : 16.90 KG

Gross Weight : 19.35 KG
